PMLe 10/14×85 PV fuse holder 1500V DC
NEW
Fuse holders that offer 1500V DC rated voltages
Fuse holder for cylindrical fuse link size 10×85 gVP and 10/14×85 gPV. Modern compact design. Ventilation zones optimized for a better heat dissipation. Manufactured with a high quality materials. Silver plated copper contacts. Plastic materials with high temperature resistance and self-extinguishable. All the materials are according to the European Directive RoHS (Restriction of the use of certain hazardous substances in electrical material) and also halogen free.
Range
| SIZE | Un (V DC) | In (A) | INDICATOR | POLES | REFERENCE |
|---|---|---|---|---|---|
| 10x85 | 10/14x85 | 1500V | 32A | 1P | 485705 |
Technical data
| Rated current | 32A |
| Rated voltage | 1000V AC | 1500V DC |
| Maximum power dissipation | 7,5W |
| Power dissipation per pole | 80% In 0,2W 100% In 0,3W |
| Pollution degree | 3 |
| Protection index * | IP20 |
| Rated impulse withstand voltage | 8kV U imp |
| Ambient temperature of service | -40°C ... 70°C (with carrier operation) -50°C ... 80°C (without carrier operation) |
| Storage temperature | -50°C ... 80°C |
| * To obtain an IP20 rating with cable protection of Ø ≤4.5mm, use the special protection accessory. | |
Standards
IEC/EN 60269-1
IEC/EN 60269-2
UL4248-1 Fuse holders
UL4248-19 Photovoltaic fuse holders
UL486E Wiring terminals
Dimensions
Weight 84,5gr
Certifications
Accessories

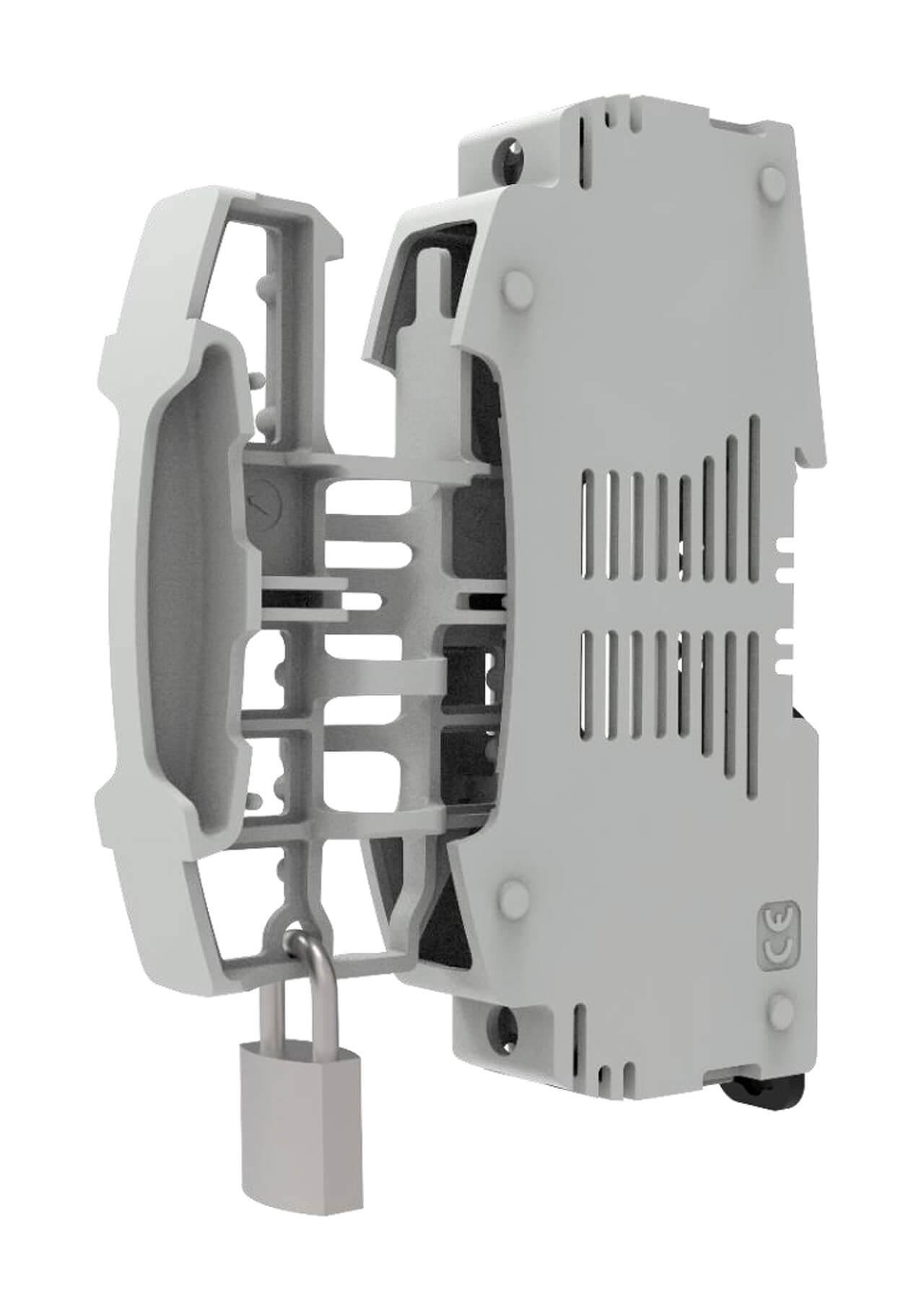

Lock of the fuse holder
Systems to avoid the operation and connection

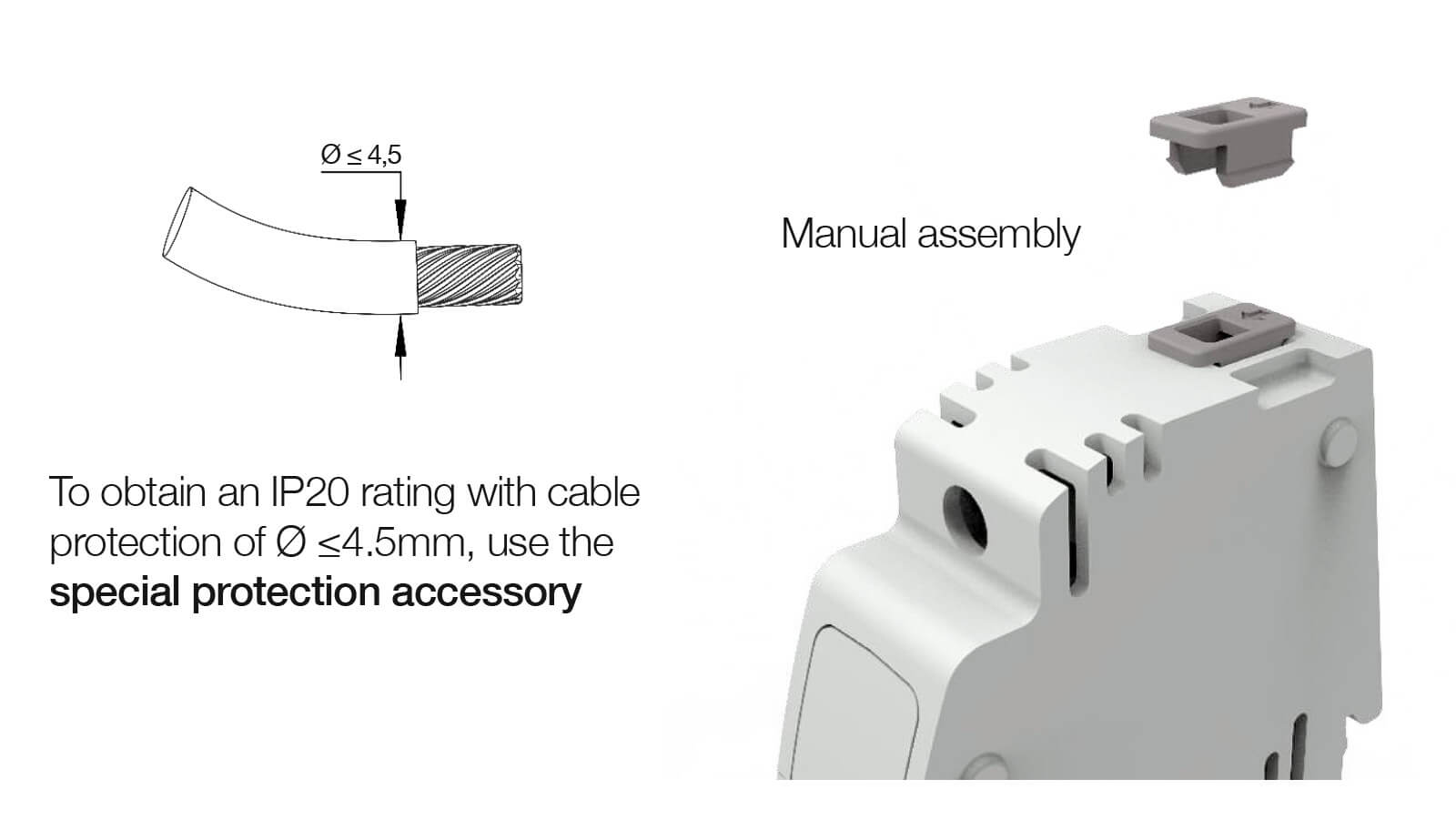

Special IP20 protection
The accessory must be positioned in the wire entries, if it’s necessary to achieve the IP20 degree of protection with thin wires

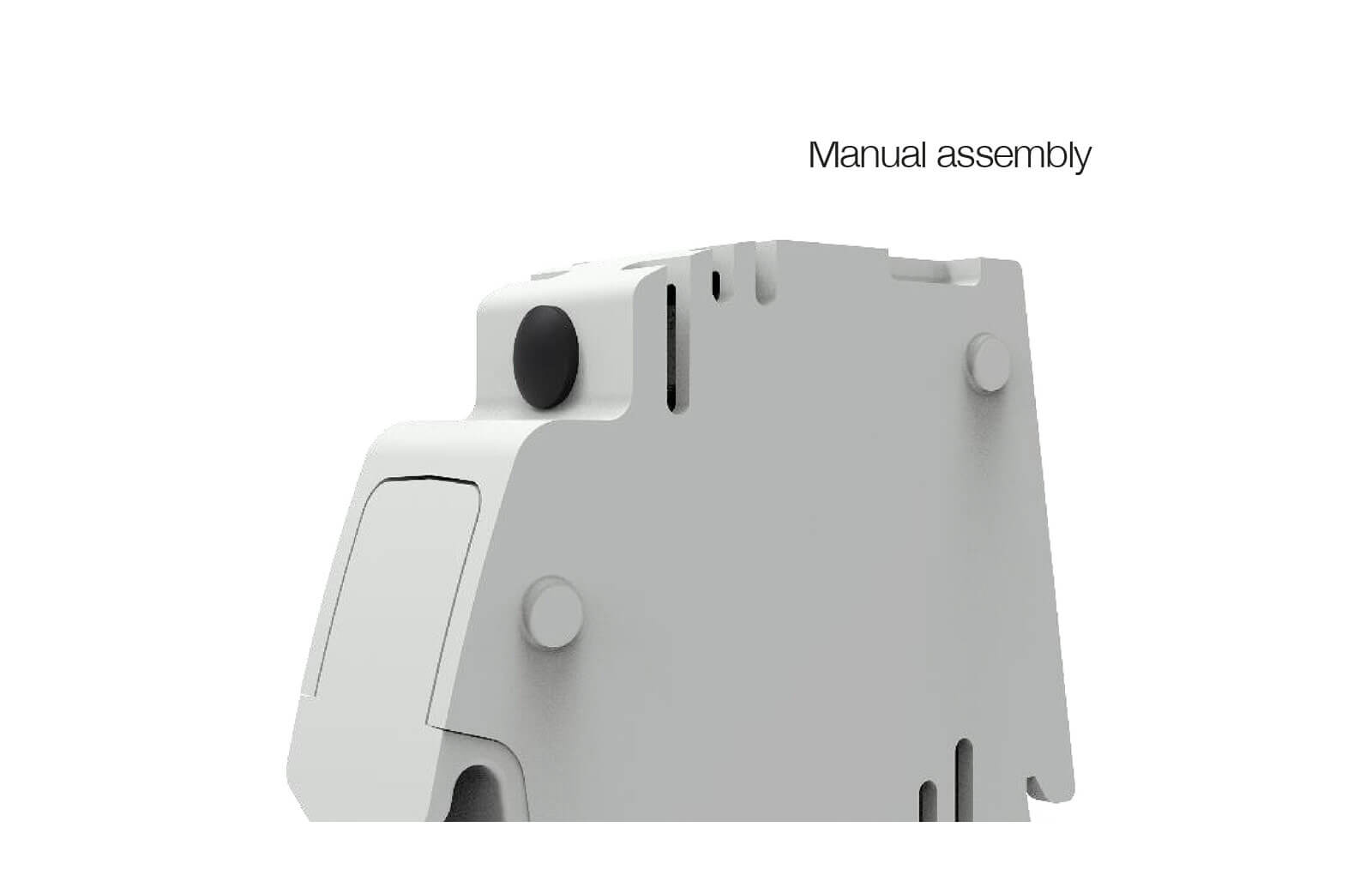

Screw’s protection accessory
Protection accesory to avoid the screws manipulation and improve the
protection degree
Compatible
 |
 |
|
| 10x85 Cylindrical gPV fuse link | 10/14x85 Cylindrical gPV fuse link | |
| U | 1500V DC 1200V DC |
1500V DC |
| In | 2A...16A 20A | 25A |
20A...32A |
| Breaking capacity | 30kA 10kA |
10kA |
